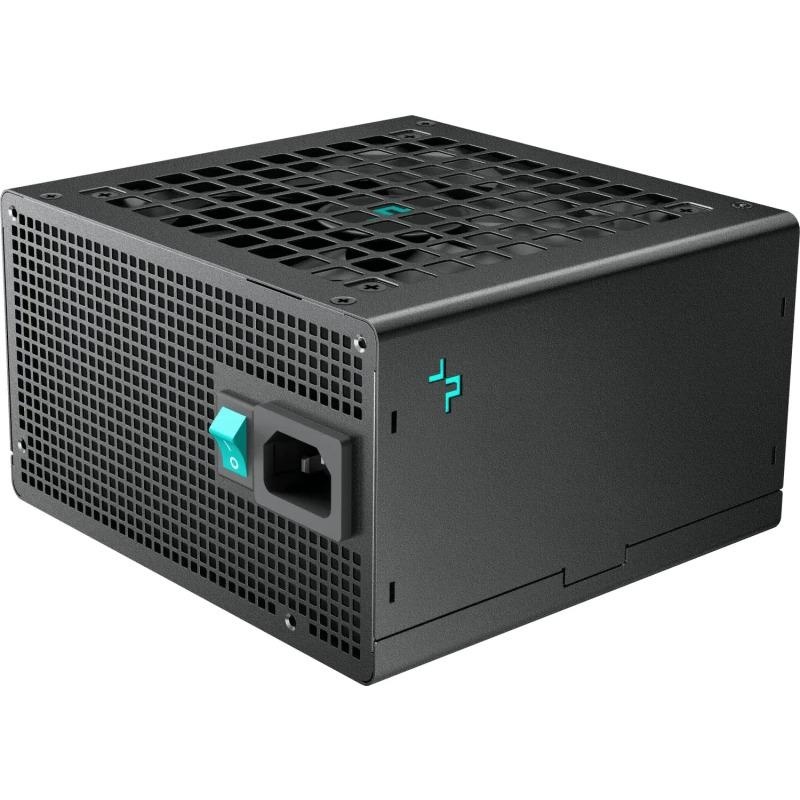

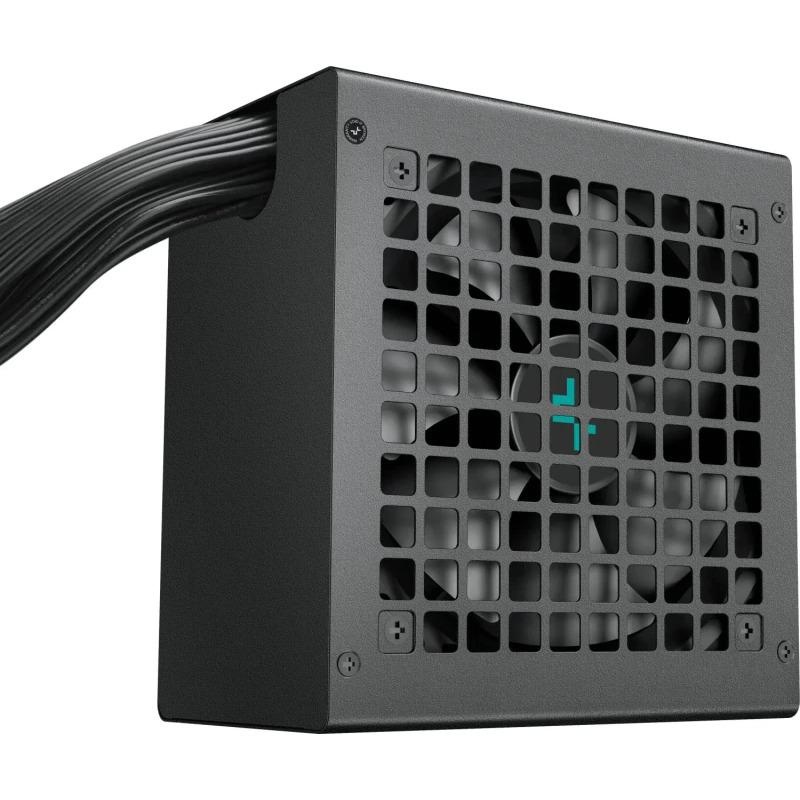

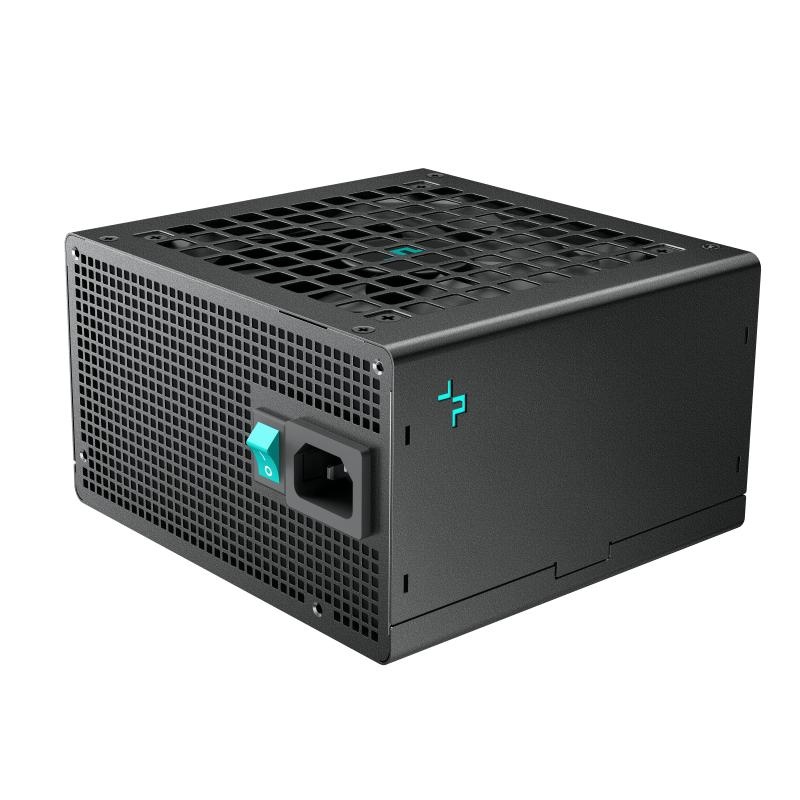

Sursa DEEPCOOL PL550D V2 550W 80 PLUS Bronze
224,00 RON
185,12 RON
(fara TVA)
Costurile de livrare nu sunt incluse
Detalii
SKU
R-PL550D-FC0B-EU V2
Categorii
Brand
Country of origin
China
AC input frequency
50/60 Hz
On/off switch
Yes
Mean time between failures (MTBF)
100000 h
AC input voltage
100 - 240 V
Height
86 mm
80 PLUS certification
80 PLUS Bronze
Compliance certificates
RoHS, WEEE
Number of fans
1 fan(s)
Fan diameter
12 cm
Power supply unit (PSU) form factor
ATX
Purpose
PC
Number of SATA power connectors
6
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Combined power (+5Vsb)
15 W
Max output current (+5Vsb)
3 A
Width
150 mm
CPU power connector (4+4 pin)
Yes
Fan location
Top
ATX version
3.0
Certification
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Bearing technology
HYB
PCI Express power connectors (6+2 pin)
3
Peripheral (Molex) power connectors (4-pin)
2
Motherboard power connector
20+4 pin ATX
Motherboard power cable length
55 cm
ATX power connector (20+4 pin)
Yes
Cabling type
Non-Modular
Hold time
16 ms
Power Good signal delay range
100 - 150 ms
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Max output current (-12V)
0.3 A
Sustainability certificates
ErP, Triman
Depth
140 mm
SATA power cable length
450,550,650 mm
PCI Express power connectors (16-pin)
2
Total power
550 W
Input current
8 - 4 A
Combined power (+12V)
549.6 W
Max output current (+12V)
45.8 A
