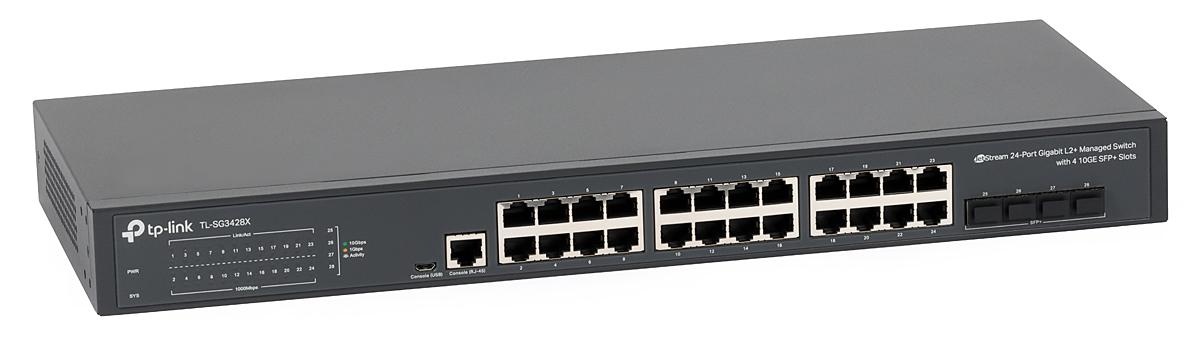

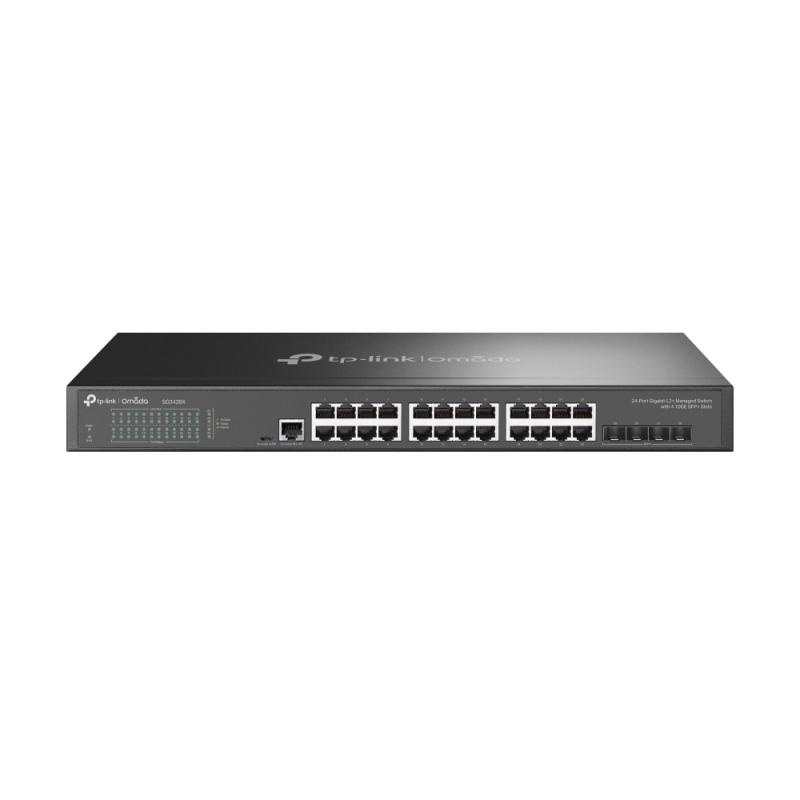

• "JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, - Img 1
  • "JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, - Img 2
  • "JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, - Img 3

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing,

tp-link
1.378,00 RON
1.138,84 RON (fara TVA)
Costurile de livrare nu sunt incluse
tp-link
Cod produs - SKU TL-SG3428X
Adauga la Favorite

Detalii

SKU
TL-SG3428X
Categorii
Switch-uri
Brand
tp-link
Product colour
Black
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
10 - 90%
Quick start guide
Yes
Quality of Service (QoS) support
Yes
VLAN support
Yes
Cables included
LAN (RJ-45)
Height
44 mm
Web-based management
Yes
Static route
Yes
Access Control List (ACL)
Yes
System event log
Yes
LED indicators
Yes
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Storage temperature (T-T)
-40 - 70 C
Policy-based routing
Yes
Rack mounting
Yes
AC input voltage
100 - 240 V
LAN port type
Gigabit
Storage relative humidity (H-H)
5 - 90%
AC input frequency
50 - 60 Hz
Form factor
1U
Depth
180 mm
Power over Ethernet (PoE)
No
Rate limiting
Yes
Jumbo frames support
Yes
ARP inspection
Yes
Switch type
Managed
10G support
Yes
Power source
AC
Power supply included
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IGMP snooping
Yes
Store-and-forward
Yes
Flow control support
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Link aggregation
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Multicast support
Yes
Installed SFP+ modules quantity
0
Width
440 mm
Configuring Location Settings (CLI)
Yes
SSH/SSL support
Yes
Power connector
AC-in jack
Jumbo frames
9000
Port mirroring
Yes
Basic switching RJ-45 Ethernet ports quantity
24
MAC address table
16000 entries
Broadcast storm control
Yes
IP-MAC-Port binding
Yes
Number of fans
0 fan(s)
Switching capacity
128 Gbit/s
Packet buffer memory
12 MB
Forwarding rate
95.23 Mpps
Cloud-managed
Yes
SFP module slots quantity
4
Console port
RJ-45/Micro-USB
Number of VLANs
4000
Number of static routes
48
Multicast Listener Discovery (MLD) snooping
Y
Fanless
Yes
Management protocols
SNMPv1/v2c/v3, SNTP
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Operating temperature (T-T)
0 - 45 C
MIB support
Yes
IPv4 routes
48
IPv6 routes
48
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Active link detection
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Authentication type
AAA, RADIUS, TACACS+
SFP+ module slots quantity
4
Switch layer
L2+/L3
Gigabit Ethernet (copper) ports quantity
24
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Networking standards
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Heat dissipation
80.52 BTU/h
Power consumption (max)
23.6 W
