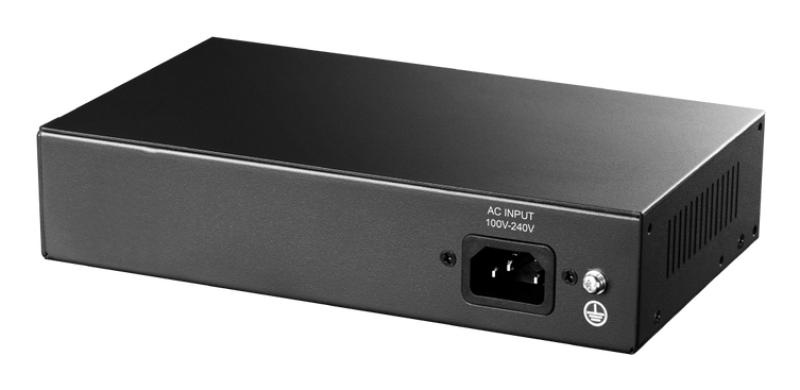

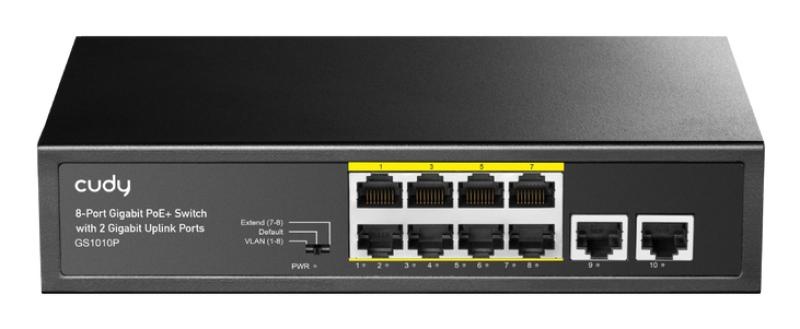

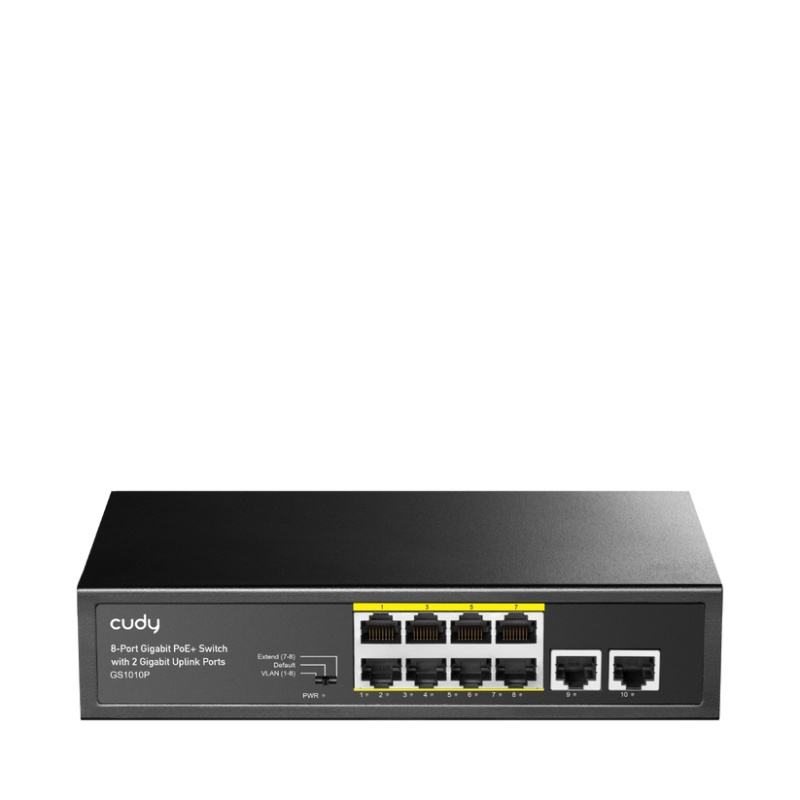

CUDY 8 RJ-45 10/100/1000M PSE ports +2 RJ45 10/100/1000 Uplink Port Unmanaged PoE+ Switch,VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF，, 802.3af/at standard, Aternative 1/2(+),3/6(-), Rack-mountable Steel Case, 120W Internal Power Supply
246,00 RON
203,31 RON
(fara TVA)
Costurile de livrare nu sunt incluse
Detalii
SKU
GS1010P
Categorii
Brand
Product colour
Black
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Quick start guide
Yes
LAN-Port-Type
Gigabit
VLAN support
Yes
Rackable
No
Redundant-PSU
No
Plug and Play
Yes
Height
44 mm
Power over Ethernet (PoE)
Yes
LAN-Ports
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity
8
Rack mounting
Yes
AC input voltage
100 - 240 V
Ethernet LAN data rates
10,100 Mbit/s
Storage relative humidity (H-H)
5 - 90%
Housing material
Metal
Wall mountable
Yes
Jumbo frames support
Yes
Operating temperature (T-T)
-20 - 50 C
Power source
AC
Power supply included
Yes
Store-and-forward
Yes
Stackable
No
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Basic switching RJ-45 Ethernet ports quantity
10
Uplink ports quantity
2
Power connector
AC-in jack
Weight
630 g
Depth
150 mm
LED indicators
Activity, Link, Power
Fanless
Yes
Width
220 mm
Form factor
Desktop/Wall-Mounting
Total Power over Ethernet (PoE) budget
120 W
Storage temperature (T-T)
-40 - 80 C
Layer
Layer-2
Number of VLANs
8
MAC address table
2048 entries
Packet buffer memory
0.448 MB
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology
100BASE-T
Cable types supported
Cat3, Cat5, Cat5e
Bandwidth
20 Gbit/s
Output current
2.3 A
Output voltage
52 V
